IMS III 17260 - 电缆剥皮器
Intercable以开发和生产各种类型电缆的低压和中压领域的高质量剥线工具而闻名。
设计用于剥除绝缘厚度达1.5mm的中压电缆或高压电缆的主绝缘层，无需使用硅质润滑剂。适用范围绝缘厚度高达15mm，截面积高达1000mm²，和直径15-58 mm。
产品描述

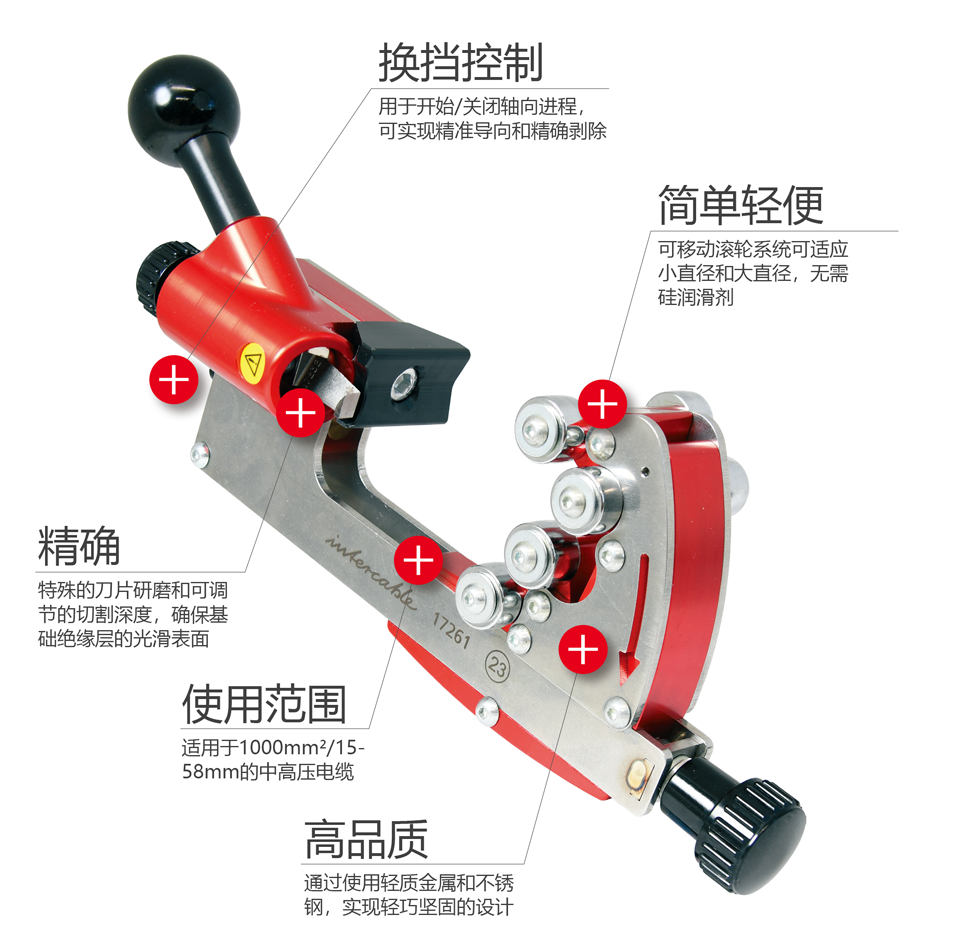

技术特点：
设计用于剥除6-45 kV中压/高压电缆的绝缘层，绝缘厚度高达15mm，截面积高达1000mm²，和直径15-58 mm。
•通过使用轻质金属和不锈钢，设计轻巧坚固
•可定位，像老虎钳系统一样定位在电缆上
•螺旋和圆形切割
•可移动轴承轮系统，无需额外的硅润滑剂
•轴向进程可二速前进，换挡杆可开始/关闭轴向进程
•可更换刀片，刀片由硬化钢制成
•叶片深度可调，范围从0到1.5mm（每档可调0.1 mm）
•可限制和锁定刀片深度
技术参数：
•尺寸/工具： 220x60x90mm
•重量/工具： 580克
技术参数：
•IMS III-电缆剥皮器································································17261
•2.5 mm内六角扳手································································17100
•软尼龙袋·········································································AB6230
•备用叶片··········································································17232
